European Power Cords

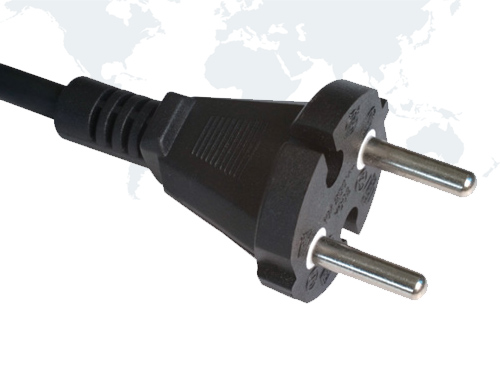

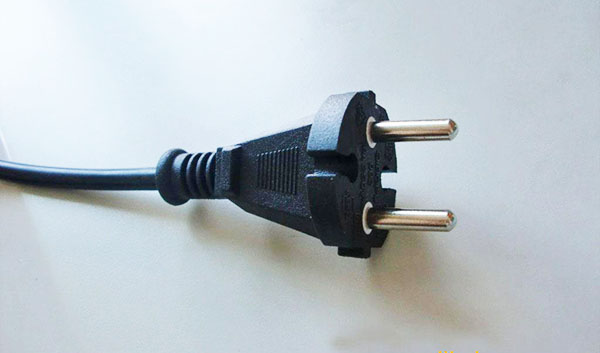

Europe Power Cords VDE Approval EU02

Europe Power Cords VDE Approval EU02
Certifications Approval and Compliances

SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    EU02
  • Group Model
  • Models Description
    4.8mm round contacts pin on 19mm center
  • Standard
    VDE Approvals Schuko Plug CEE7-7 VII
  • Voltage
    250V
  • Amperage
    16A
  • Conductors
    2 Poles 2 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    26g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles


Gauge/ # ConductorsCord TypeElectrical Rating (Amps/Volts)
2C*0.75mm2

H05VV-F, H03RT-H

H05RR-F, H05RN-F

16A/250V
2C*1.0mm2

H05VV-F, H03RT-H

H05RR-F, H05RN-F, H07RN-F

16A/250V
2C*1.5mm2

H05VV-F

H05RR-F, H05RN-F, H07RN-F

16A/250V


Drawing and More

Darwing

VDE-power-cords-16a-250v-2pole.pngEurope Power Cords VDE Approval EU02.jpg
