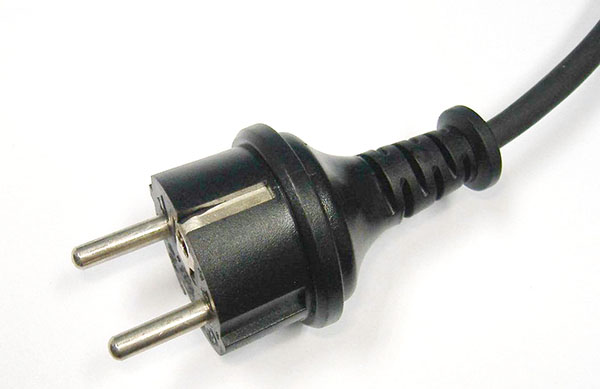

Europe Power Cords VDE Plug EU03-F

Europe Power Cords VDE Plug  EU03-F
Certifications Approval and Compliances

EU03-F
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    EU03-F
  • Group Model
  • Models Description
    Degree of protection IP44 Pin Diameter 4.8mm
  • Standard
    Standard DIN VDE 0620-1 IEC884-1 CEE7
  • Voltage
    250V
  • Amperage
    16A
  • Conductors
    3 Poles 3 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    58g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles

H05RN-F, H07RN-F

3G0.75mm2, 3G1.0mm2, 3G1.5mm2

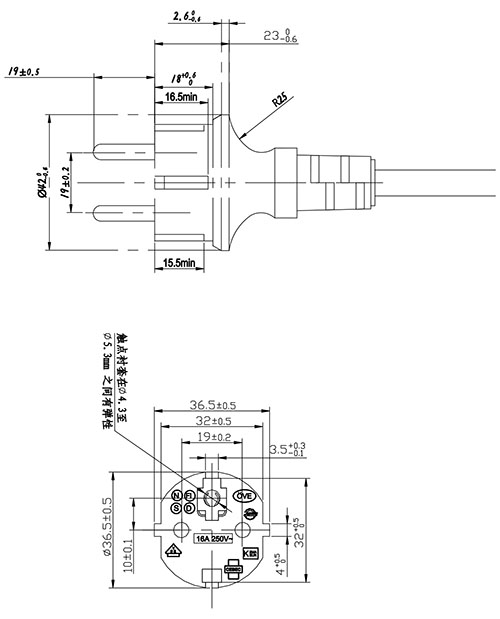

Drawing and More

VDE-POWER-CORD-EU03-F.jpgEurope Power Cords Waterproof Power cord EU02-F.jpg
