American Power Cords

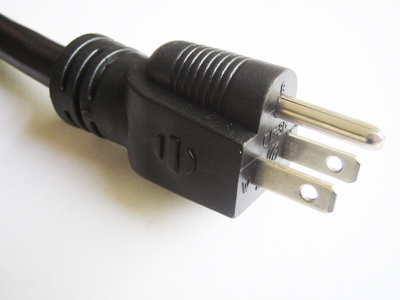

NEMA 5-15P Heavy Duty Power Cords

Certifications Approval and Compliances

UL03-H

SPECIFICATIONS

LABEL
VALUE
Model
UL03-H
Group Model
Models Description
3-pole 3-wire Plug
Standard
Standard UL817 UL62 UL1581
Voltage
125V-250V
Amperage
10V 13A 15A
Conductors
3 Poles 3 Wires
Jacket Material
PVC/Rubber
Temperature Rating
60C
Plug Weight
32g
Color
Black is standard but any color available
Environmental Compliance
ROHS REACH PAHS
Conductor
IEC 60320 C13 / IEC 60320 C19 Plug
Testing
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin
CHINA
Other Value

Available Wire Styles

Cat. No.	ANSI/NEMA WD6 Config	Cord AWG	Cord Type	Electrical Rating Amps V
UL03-H	5-15P	18	SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW	10/125
		16	SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW	13/125
		14	SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW	15/125
		12	SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW	15/125

Drawing and More

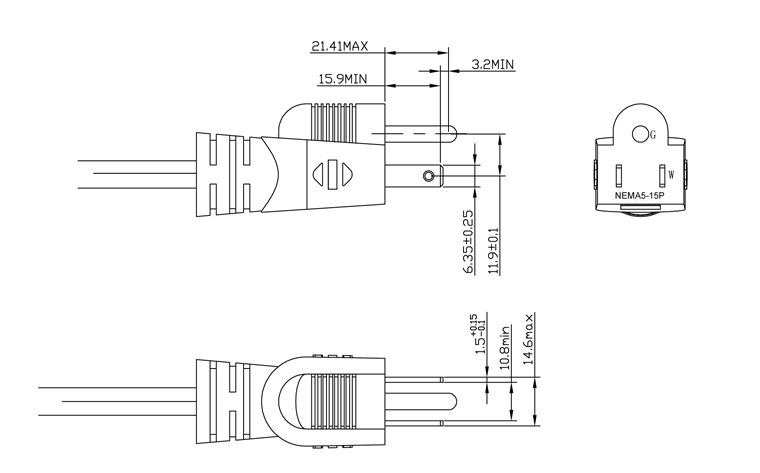

Drawing

NEMA 5-15P Heavy Duty Power Cords
