Japan Power Cords

PSE JET Power cord 2p plug FH-20A

PSE JET Power cord 2p plug FH-20A

Certifications Approval and Compliances

FH-20A

SPECIFICATIONS

LABEL
VALUE
Model
FH-20A
Group Model
Models Description
PVC PLUG TYPE 2P
Standard
ACCORDING TO JAPAN SPECIFICATION JIS C8303
Voltage
125V
Amperage
7A-12A-15A
Conductors
2P
Jacket Material
PVC Sheathed
Temperature Rating
60C
Plug Weight
26g
Color
Black is standard but any color available
Environmental Compliance
ROHS REACH PAHS
Conductor
Plug
Testing
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin
CHINA
Other Value

Available Wire Styles

TYPE CABLE SEC. MM2

HVCTFK 2X0.75-2.0

HVCTF 2X0.75-2.0

HVFF 2X0.75-2.0

VCT 2X0.75-2.0

VCTFK 2X0.75-2.0

VCTF 2X0.75-2.0

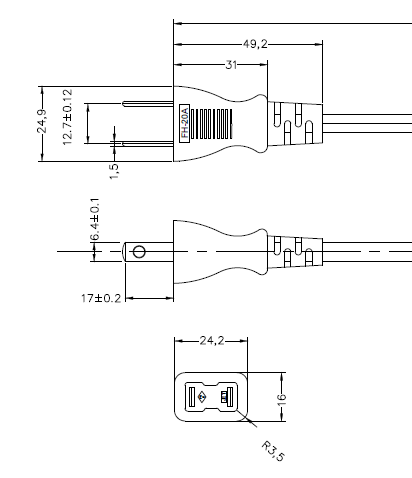

Drawing and More
