American Power Cords

UL Approval IEC 60320 C13 Standard Power Cord

Certifications Approval and Compliances

ST3

SPECIFICATIONS

LABEL
VALUE
Model
ST3
Group Model
Models Description
3-Pole 3 Wire Plug
Standard
Standard UL817 IEC C13
Voltage
125V
Amperage
10A 13A 15A
Conductors
3 poles 3 wires
Jacket Material
PVC/Rubber
Temperature Rating
60C/90C/105C
Plug Weight
32g
Color
Black is standard but any color available
Environmental Compliance
ROHS REACH PAHS
Conductor
IEC 60320
Testing
Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
Country of Origin
CHINA
Other Value

Available Wire Styles

Cat. No.	ANSI/NEMA WD6 Config	Cord AWG	Cord Type	Electrical Rating Amps V
ST3	IEC 60320 C13	18	SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SVT, SVTO, SVTOO, ST, STW, STO, STOW, STOO, STOOW	10/125, 250
		16	SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW	13/125, 250

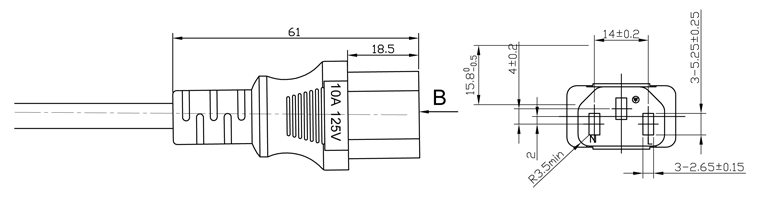

Drawing and More

Brothers

NEMA 1-15P	NEMA 5-15P	NEMA 6-15P	NEMA 5-20P	NEMA 6-20P
NEMA 6-30P

Connectors
IEC C13 to EMA 5-15P
IEC C13 to NEMA 6-15P
