Wiring

UL Wiring 1015 600V 80C 90C 105C Single Conductor with Extruded Insulation

Certifications Approval and Compliances

UL 1015

SPECIFICATIONS

LABEL
VALUE
Model
UL 1015
Group Model
UL 1015
Models Description
UL 1015
Standard
Subj.758
Voltage
600V
Amperage
Conductors
1
Jacket Material
PVC Sheathed
Temperature Rating
80C 90C 105C
Plug Weight
36g
Color
Black is standard but any color available
Environmental Compliance
ROHS REACH PAHS
Conductor
Plug
Testing
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin
CHINA
Other Value

Available Wire Styles

APPLIANCE WIRING MATERIAL

Subj.758	Section 1	Page 1015	Issued:1959-05-01
			Revised:2013-02-22

Style 1015

Single conductor with extruded insulation


Rating	80, 90 or 105 deg C, 600 Vac or 750 Vdc, Horizontal flame. Optional - 60 or 80 deg C Oil.

Conductor	30 AWG - 2000 kcmil, Solid or Stranded.

Insulation	Extruded PVC
	Conductor size	Minimum average thickness	Minimum thickness at any point
	30-9 AWG	30 mils	27 mils
	8-7 AWG	45 mils	40 mils
	6-2 AWG	60 mils	54 mils
	1-4/0 AWG	80 mils	72 mils
	250-500 kcmil	95 mils	86 mils
	550-1000 kcmil	110 mils	99 mils
	1100-2000 kcmil	125 mils	112 mils

Standard	Appliance Wiring Material UL 758.

Marking	General

Use	Internal Wiring of Appliances. Tags may also indicate the following: 2,500 V peak - for electronic use only.

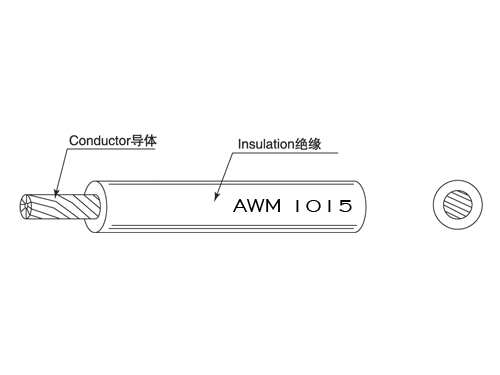

Drawing and More
