European Power Cords

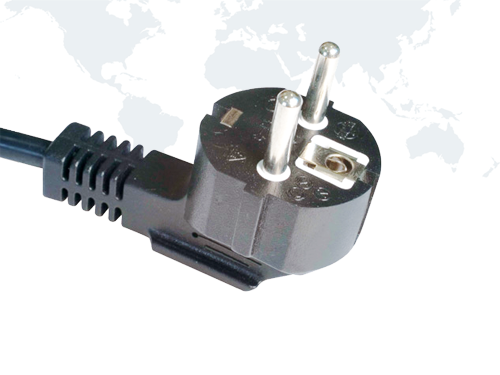

Europe Power Cords VDE SCHUKO Plug EU03

Certifications Approval and Compliances

EU03

SPECIFICATIONS

LABEL
VALUE
Model
EU03
Group Model
Models Description
4.8mm round contacts pin on 19mm center
Standard
Standard DIN VDE 0620-1 IEC884-1 CEE7 DIN 49441-R2
Voltage
250V
Amperage
16A
Conductors
3 Poles 3 Wires
Jacket Material
PVC/Rubber
Temperature Rating
60C
Plug Weight
32g
Color
Black is standard but any color available
Environmental Compliance
ROHS REACH PAHS
Conductor
IEC 60320 C13 / IEC 60320 C15 Plug
Testing
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Country of Origin
CHINA
Other Value
Degree of protection: IP 20

Available Wire Styles

Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
3C*0.5mm2	H03VV-F	16A/250V
3C*0.75mm2	H05VV-F, H03RT-H H05RR-F, H05RN-F	16A/250V
3C*1.0mm2	H05VV-F, H03RT-H H05RR-F, H05RN-F, H07RN-F	16A/250V
3C*1.5mm2	H05VV-F H05RR-F, H05RN-F, H07RN-F	16A/250V

Drawing and More
